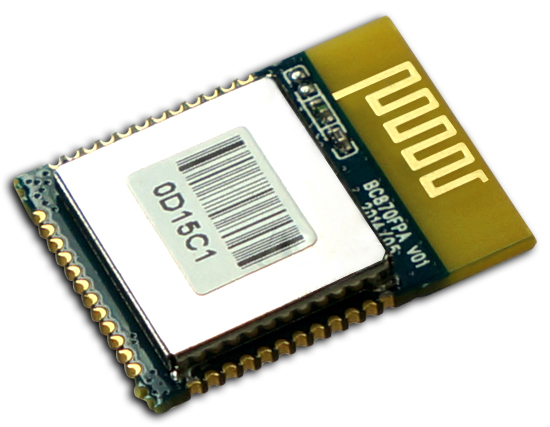

BC870FPA-S



Bluetooth 4.0 LE and Classic dual-mode module with built-in flash for complete audio and data application firmware programming.  Support Bluetooth Smart LE GATT data transfer for smartphone app control.



Antenna Type PCB

Chipset CSR8670

Standard
Compliance		 Bluetooth 3.0 / Bluetooth 4.0


MEMORY 16Mbit Flash

audio
  • PCM, I2S and SPDIF digital audio interface
  • High-performance stereo audio DAC
  • 2 ADC channels for analog mic input
  • Up to 6 digital microphone input

HANDSFREE YES

Dimensions 16.5 x 22.5 x 2.8 mm

SHIELDING YES

Applications
  • TVs and home entertainment systems
  • Soundbars
  • Audio Docking Stations
  • Audio Transmitters
  • Car Kit
  • Tablets/PCs/Mobile
  • Wearable audio with sensors
  • Wired/wireless headphones for music/gaming
  • Wired/wireless speakers and speakerphones
  • Professional audio systems

Features
  • BLE GATT for smartphone app control
  • 80MHz RISC MCU for applications
  • Ultra-low-power 80MIPS Kalimba DSP
  • I2C, SPI, UART
  • Support apacitive touch sensor inputs
  • Integrated battery charger
  • Support CSR's latest CVC technology
  • Narrow-band and wideband noise reduction
