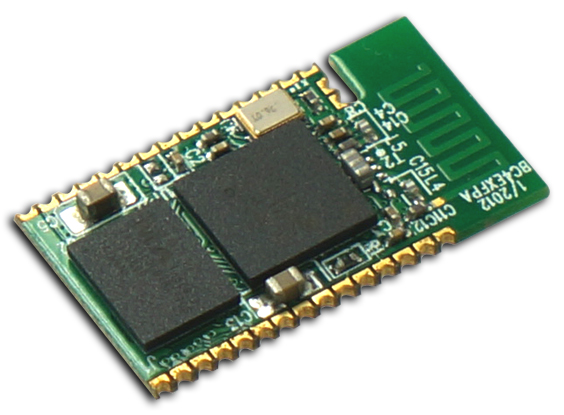

BC4EXFPA



The most popular Bluetooth Classic 2.0+EDR data module supporting SPP and HID Profile.



Antenna Type External

Chipset CSR BC4 Ext

Standard
Compliance		 Bluetooth 2.0 Classic

PROCESSOR RISC

MEMORY 1024kB Flash + 48kB RAM

RF Max 4dBm Tx
Up to -80dBm Rx

POWER
CONSUMPTION		 39mA SCO connection
2.4mA 40ms Sniff
40uA deep sleep

Dimensions 25.0 x 14.5 x 2.2 mm

SHIELDING NO

Applications
  • Electronic Toy
  • Remote Control and Presenters
  • Wireless Keyboards and Mice
  • GamePad and Game Controllers
  • HID applications
  • Digital Camera and Printer
  • POS & Barcode Reader
  • Data Collector
  • Industrial Control and Sensor Networks
  • Cable Replacement

Features
  • Dual UART port
  • Support 802.11 Co-existence
  • Fully embedded RFCOMM
  • Full Piconet and Scatternet Support
