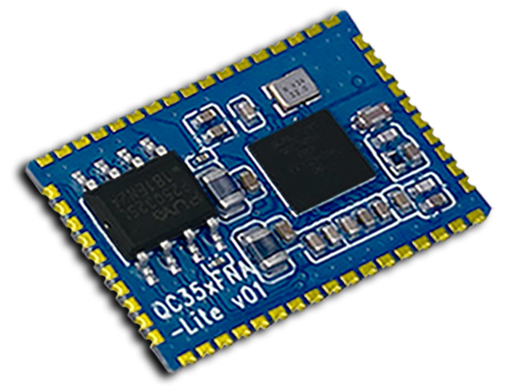

QC356FNA

Bluetooth 5.2 LE and Classic dual-mode module with on-module flash for complete audio and data application firmware programming.  Support Bluetooth Smart LE GATT data transfer for smartphone app control.  External antenna required.



ANTENNA TYPE External

CHIPSET QCC3056

STANDARD
COMPLIANCE
Bluetooth 5.2


MEMORY 32/64Mbit Flash

AUDIO
  • PCM, I2S digital audio input interface
  • High-performance mono audio DAC
  • 2 ADC channels for analog input
  • USB Audio Class

HANDSFREE YES

DIMENSIONS 18 x 13.0 x 2.3 mm

SHIELDING NO

APPLICATIONS
  • TVs and home entertainment systems
  • TWS earbuds
  • USB audio dongles
  • Audio transmitters
  • Bluetooth helmets
  • Two-way radio and walkie-talkie
  • Unified Communication devices
  • Wired/wireless headphones for music/gaming
  • VoIP handsets
  • Professional audio systems

FEATURES
  • BLE GATT for smartphone app control
  • Dual core 32-bit application processor
  • Dual core 120MIPS Kalimba DSP
  • LED drivers, I2C, UART and PIO interfcaes
  • Ultra low power consumption
  • Integrated battery charger
  • CVC Echo Cancellation and Noise Supression
  • Support aptX HD, aptX Adaptive, aptX Voice
  • Support FF/FB/Hybrid Active Noise Cancellation
  • Support forthcoming Bluetooth LE audio
