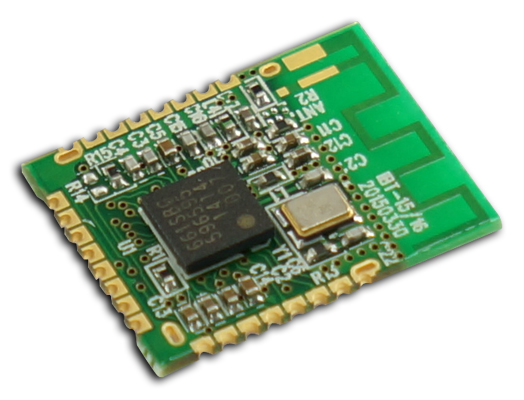

TC616BPA (aka iBT-16)



Bluetooth Classic and BLE 4.0 dual-mode data and HCI module.  Built-in SPP and BLE GATT handling for data transfer applications.



Antenna Type PCB

Chipset Toshiba TC35661SBG

Standard
Compliance		 Bluetooth 3.0+EDR / Bluetooth 4.0 LE
(SPP LE-GATT HCI)

MEMORY N/A

INTERFACES
  • I2S/PCM interface for audio data transfer
  • GPIO for host and module wake up
  • UART speed from 2.4Kbps to 4Mbps

Dimensions 15.2 x 19.0 x 2.0 mm

SHIELDING NO (optional)

Applications
  • POS Systems
  • Security Dongle for Smatphones
  • Data Transfer
  • Industrial Automation
  • Power and Lighting Control
  • Smart Consumer Electronics
  • Cable Replacement
  • Healthcare Products
  • Home Control Systems

Features
  • SPP profile support under BT Classic and GATT profile under BLE
  • Simultaneous SPP and BLE scanning and advertising operation
  • Wi-Fi co-existence (2-wire, 3-wire and 4-wire)
