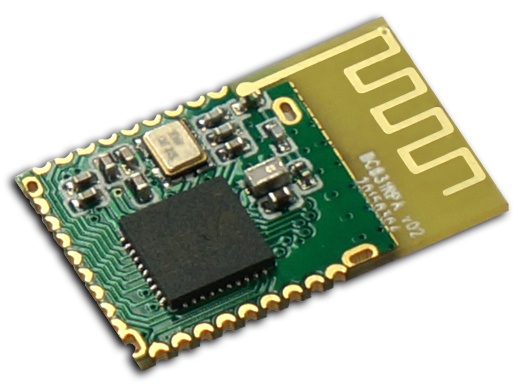

BC831RPA



Bluetooth Classic and BLE 4.0 dual-mode HCI module with built-in SBC and apt-X codec for data and audio applications.  Cost-effective solution for integration into host system running Bluetooth stack.



Antenna Type PCB

Chipset CSR8311

Standard
Compliance		 Bluetooth 3.0 / Bluetooth 4.0 HCI

MEMORY N/A

INTERFACES
  • 2 x PCM/I2S digital audio interfaces
  • BCSP, H4, H4DS and H5 support
  • Full-speed USB 2.0 interface
  • High-speed UART port up to 4Mbps

Dimensions 14.0 x 21.5 x 2.0 mm

SHIELDING NO

Applications
  • TVs and home entertainment systems
  • Soundbars
  • Smart Audio Docking Stations
  • Conferencing Systems
  • USB Dongles
  • Tablets/PCs/Mobile
  • Automotive
  • Professional Audio Systems

Features
  • On-chip SBC encoding
  • 9.5dBm Tx power with level control
  • Narrow-band and wide-band speech
  • 3 x simultaneous BLE connections and BR AD2P
  • Support for IEEE 802.11 Wi-Fi coexistence
  • Full piconet and scatternet support
  • Full-speed Bluetooth operation
  • Demo board for dual-mode BT audio and control
